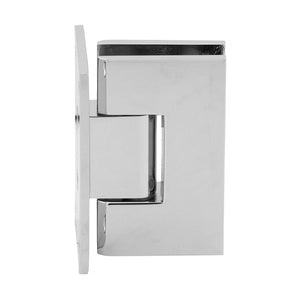

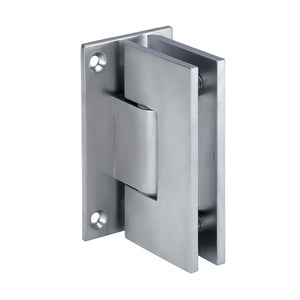

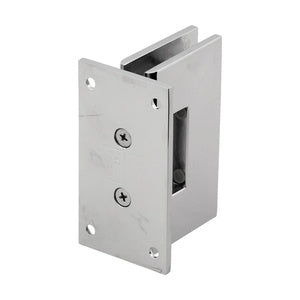

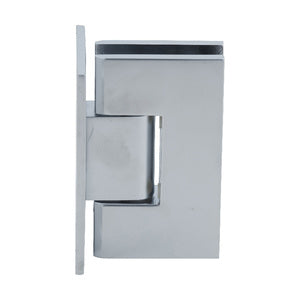

C.R.Laurence Vienna 037 Series Wall Mount Full Back Plate - Polished Chrome

VIENNA SERIES

Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with its own CRL "mouse-ears". On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

SPECIFICATIONS:

Glass Thickness: 3/8" (10mm) to 1/2" (12mm) Tempered Safety Glass.

Construction: Solid Brass

Hinge Swings: 90 Degrees in and 90 Degrees out

Closing Type: Self-Centering when withing 15 degrees of closed position

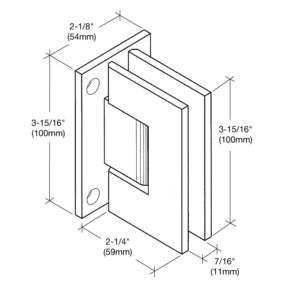

Includes: Gaskets, Screws and Glass Fabrication Dimensions

Cut-Out Required - Except VIE092 which requires cut-out for door and two holes for a fixed panel.

MAXIMUM CAPACITIES: Using Two Hinges - 110lbs/ 50kg for a 914mm Wide 10mm or 12mm Thick Glass Door

MAXIMUM CAPACITIES: Using Three Hinges -140lbs/ 63kg for a 914mm Wide 10mm or 12mm Thick Glass Door

CAT. NO. VIE037

Wall Mount Full Back Plate Standard Model (Factory set for standard closing position)

Origin: USA - California

Shipped: From Gauteng, South Africa

Notes: Due to the light and screen setting differences, the item's colour may be slightly different from the pictures.
